Symmetrix Brings Metrology Capability In-house

Outside of an advanced Quality Assurance team, metrology – the scientific study of measurement – is not a well-known concept. However, the confirmation that a project is both on track and accurate is essential to the manufacturing process.

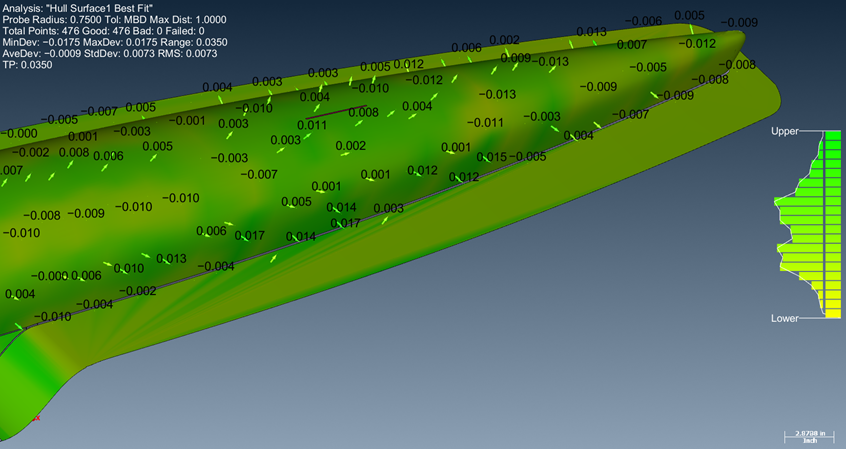

Symmetrix Composite Tooling has added high accuracy metrology expertise to its expanding toolbox. For Symmetrix, metrology means verifying that our craftsmen using our large format machining center produce shapes to the accuracy our clients demand. Fractions of millimeter tolerances over tens of meters are the norm and require exacting levels of precision in both manufacture and measurement. With our FARO® laser tracker and Verisurf software, we measure and compare tooling surfaces to the 3D CAD model geometry with sub-millimeter accuracy without limitation due to size for near real-time confirmation that a project is on track.

By coupling today’s laser technology with a modern scientific approach, metrology expertise is a powerful tool with a variety of applications. SYMX can apply this technology and use our laser tracking to ‘Clock in’ and accurately assemble large composite tooling or complex pattern geometries. Even more, Symmetrix can now offer ‘On-Site’ mold verification as a value-added service. Clients can now confidently know their production process is free of errors letting them focus on design and innovation instead of manufacturing complications.
